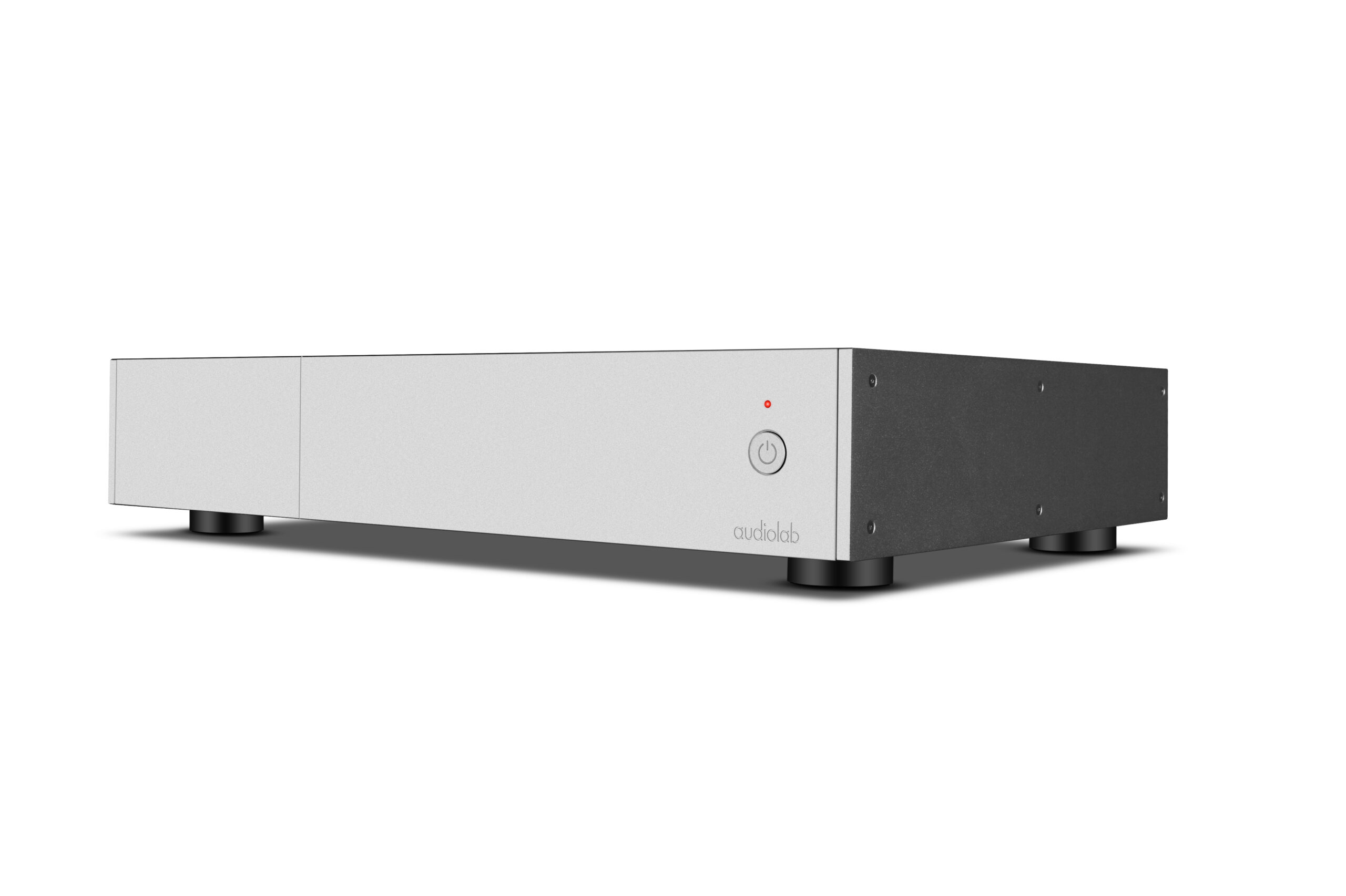

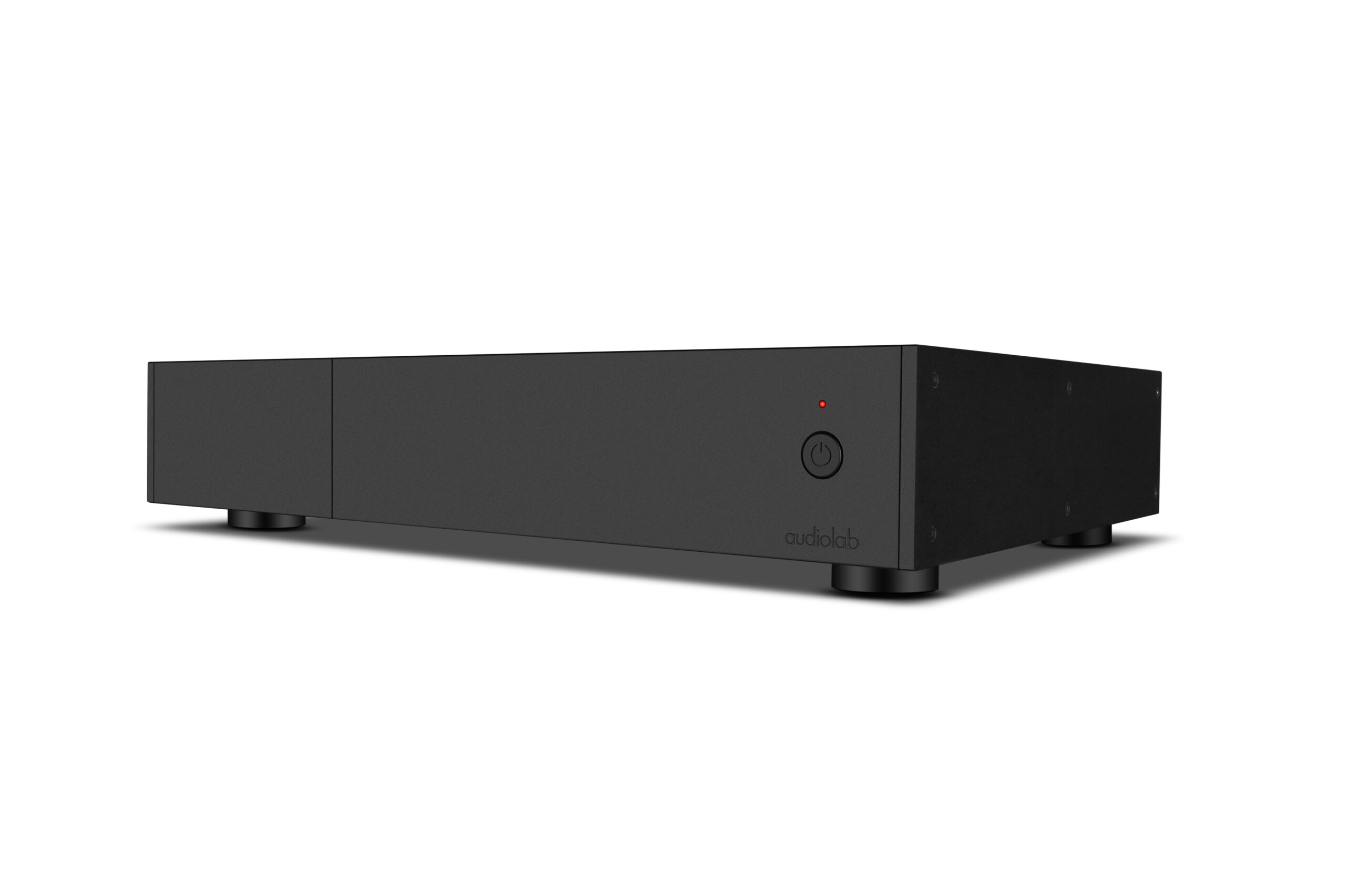

9000P
9000P - Image 2

9000P

R20,990.00

The logical development of the 9000Q preamplifier raised the question of system expansion and thus led to the birth of the 9000P – the dedicated power amplifier option for the 9000 series.

General DescriptionPower Amplifier
Design Philosophy and Core TechnologyClass AB power amplifier
CFB (Complementary Feedback Technology)
Stereo/Bridge mode
Inputs1 x Analogue, 1 x XLR, 1 x 12V Trigger
Outputs1 x Stereo Speaker
Power Amplifier Section (STEREO)
Gain29dB (RCA) / 23dB (XLR)
Rated Power OutputStereo: 2 x 100W (8 ohms, THD <1%)
Stereo: 2 x 160W (4 ohms, THD <1%)
Bridged (Mono): 300W (8 ohms, THD <1%)
Bridged (Mono): 380W (4 ohms, THD <1%)
Frequency Response20Hz – 20kHz (+/-0.3dB)
Total Harmonic Distortion (THD)<0.002% (1kHz)
Input Sensitivity1Vrms (RCA)
2Vrms (XLR)
Input Impedance10k ohms
Signal-to-Noise Ratio (S/N)> 112dB (A-weighted)
Max. Output Current15A
General
Standby Power Consumption<0.5W
Net Weight9.2kg
Gross Weight10.6kg
Dimensions (mm) (W x H x D)444 x 90 x 327 mm
Carton Size (mm) (W x H x D)514 x 165 x 470 mm
FinishBlack/Silver
Power Requirements (depending on region)220-240V – 50/60Hz
100-120V – 50/60Hz
Standard AccessoriesPower Cord, User Manual
