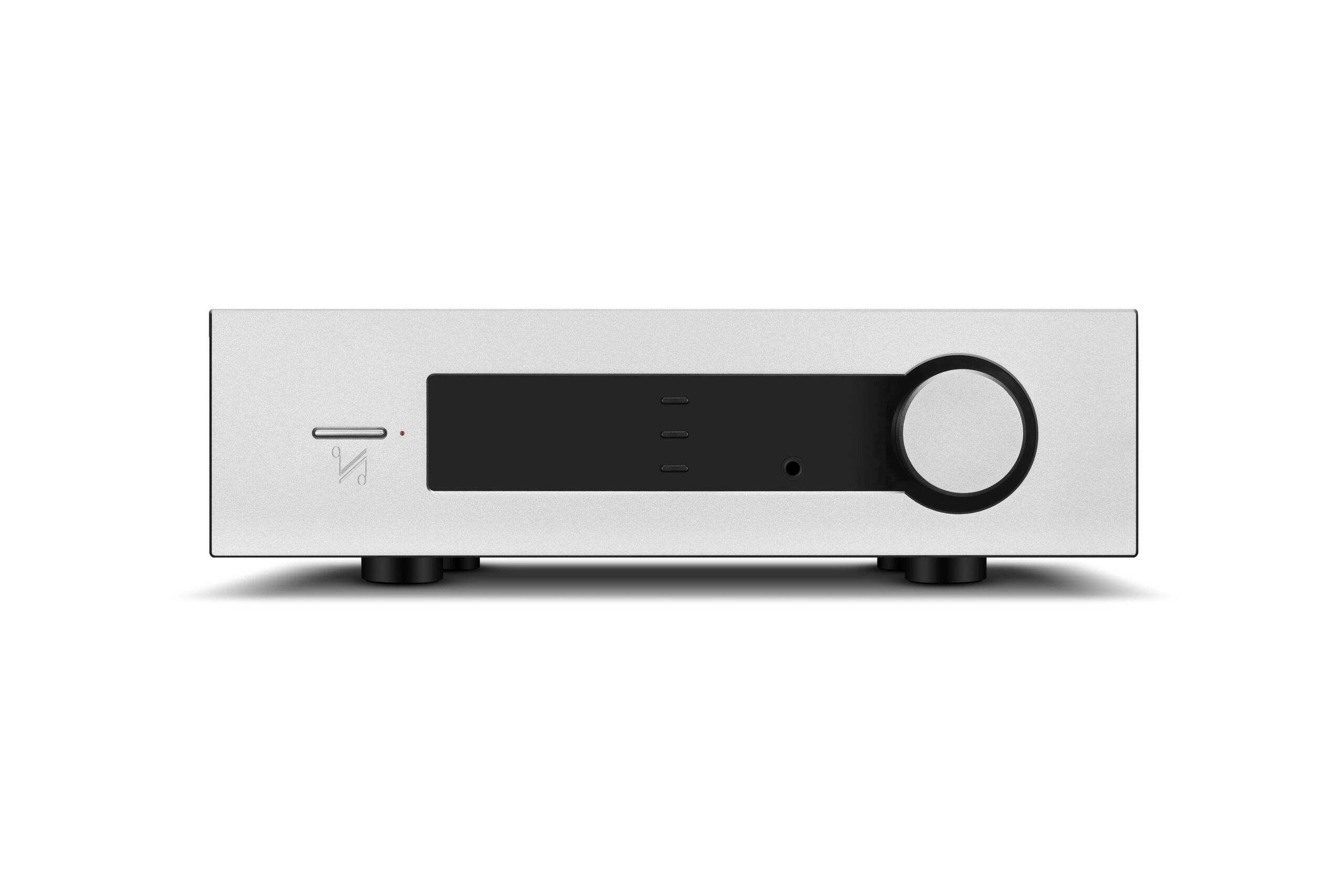

Platina Integrated
R79,990.00
The PLATINA series marks a leap forward in design, application and implementation for QUAD. This new flagship seamlessly blends QUAD heritage with a thoroughly modern digital core.
| Model | Platina Integrated |
| General Description | Integrated Amplifier |
| Design Philosophy and Core Technology | 2 x 200W (8 ohm) / 2x300W (4 ohm) |
| Class AB Dual Mono Design | |
| ES9038Pro 32-bit DAC | |
| Roon Tested | |
| Highly linear Analogue Volume Control | |
| 4.3″ 800 x 480 Full View IPS LCD | |
| Dedicated High-performance Low Noise MM/ | |
| MC Phono stage with selectable gain (46/52/60dB) | |
| Dedicated Current-Feedback Headphone Amp | |
| Support USB Upgrade | |
| Inputs | 2 x Analogue (RCA), 1 x XLR, 1 x Phono (MM / MC) |
| 2 x SPDIF (Coaxial), 2 x SPDIF (Optical) | |
| 1 x PC USB(TYPE C) 1 x HDMI ARC | |
| 1 x 12V Trigger | |
| Outputs | 1 x RCA (pair), 1 x XLR (pair) , 1 x Stereo Speaker binding post (pair), |
| 1 x Optical, 1 x Coaxial, 1 x 12V Trigger | |
| Sampling Frequency | Optical / Coaxial: 44.1kHz – 192kHz |
| PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512) | |
| Preamplifier Section | |
| Gain | 0dB (Line) +46 / +52 / +60dB Adjustable (Phono) |
| Input Sensitivity | 1.2Vrms ( Line Volume = 0dB) |
| 2.4Vrms ( XLR Volume = 0dB) | |
| 5mV (Phone MM, Gain = 46dB, Volume = 0dB) | |
| 1mV (Phone MC, Gain = 60dB, Volume = 0dB) | |
| Input Impedance | 50K (Line) |
| 50K // 100pF (Phono MM) | |
| 360R // 200pF (Phono MC) | |
| Total Harmonic Distortion (THD) | < 0.0004% (1KHz @ 2V, Volume = 0dB) |
| Frequency Response | 20Hz – 20kHz (+/- 0.1dB) |
| Output Impedance | 120 ohm |
| Signal-to-Noise ratio | >110dB (Line &XLR, A-weighted) |
| >78dB (Phono MM, A-weighted) | |
| >70dB (Phono MC, A-weighted) | |
| DAC | |
| D to A Converter | ES9038Pro |
| Total Harmonic Distortion (THD) | <0.001% (1kHz@0dBFS) |
| Output Level (0dBFS, 1KHz) | 2.0Vrms |
| Max. Sampling Frequency | Optical / Coaxial:192KHz |
| PC USB: PCM 768kHz, DSD512 | |
| Signal-to-noise Ratio (S/N) | >116dB (A-weighted) |
| Power Amplifier Section | |
| Gain | +30dB |
| Rated Power Output | 2 x 200W (8 ohm, THD<1%) |
| Rated Power Output | 2 x 310W (4 ohm, THD<1%) |
| Frequency Response | 20Hz – 20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | <0.0008% (1kHz@100W/8ohm) |
| Input Sensitivity | 1.2Vrms |
| Signal-to-Noise Ratio (S/N) | >112dB (A-weighted) |
| Max. Output Current | 20A |
| Headphone Amplifier | |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) |
| Output Impedance | 2.35 ohm |
| Load Impedance | 20 – 600 ohm |
| General | |
| Standby Power Consumption | <0.5W |
| Net Weight | 17.1kg |
| Gross Weight | 19.3kg |
| Dimensions (mm) (W x H x D) | 445 x 134.5 x 348mm |
| Carton Size (mm) (W x H x D) | 500 x 225 x 450mm |
| Finish | Black / Silver |
| Power Requirements (depending on region) | 220-240V ~ 50/60Hz |
| 100-120V ~ 50/60Hz | |
| Standard Accessories | Power Cord, Remote Control, User Manual |
